TNET -

Phase A

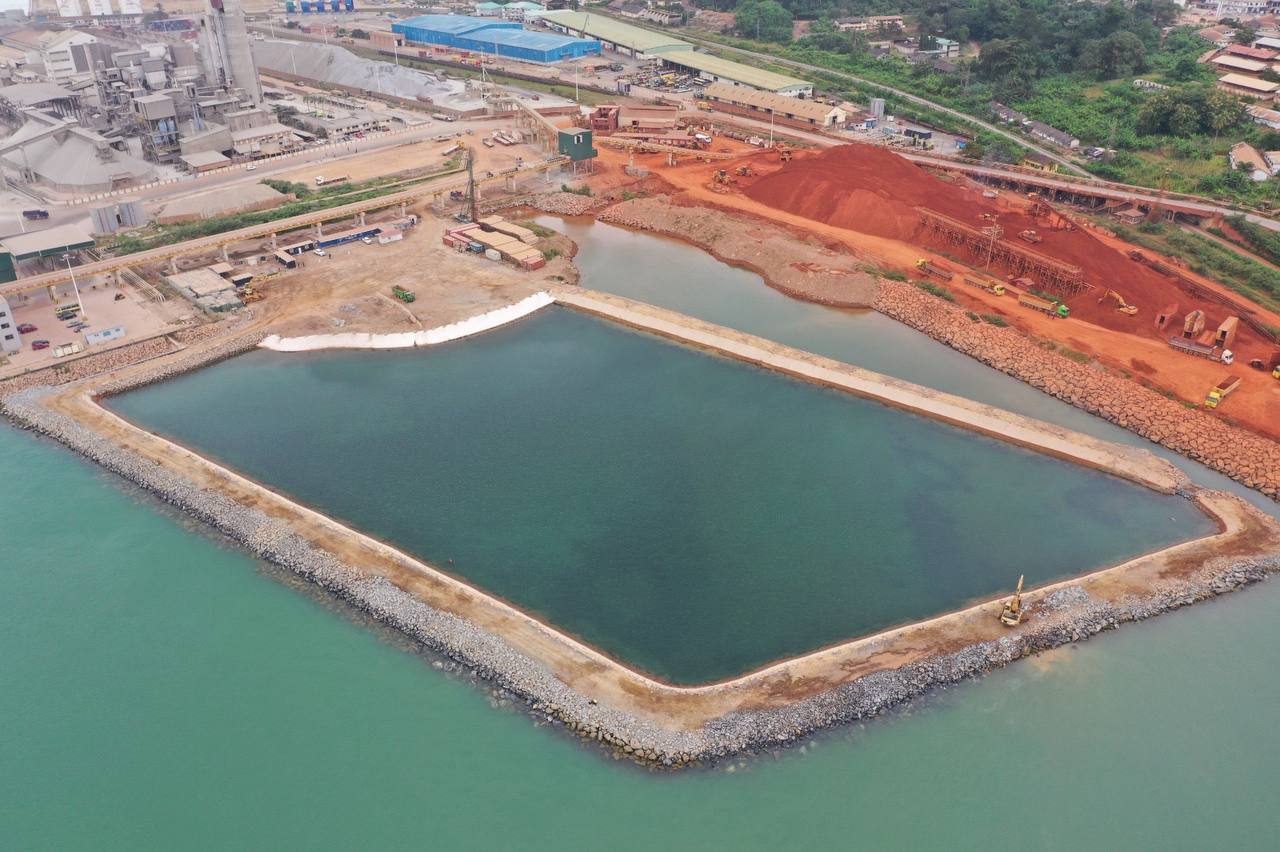

Revetment Construction

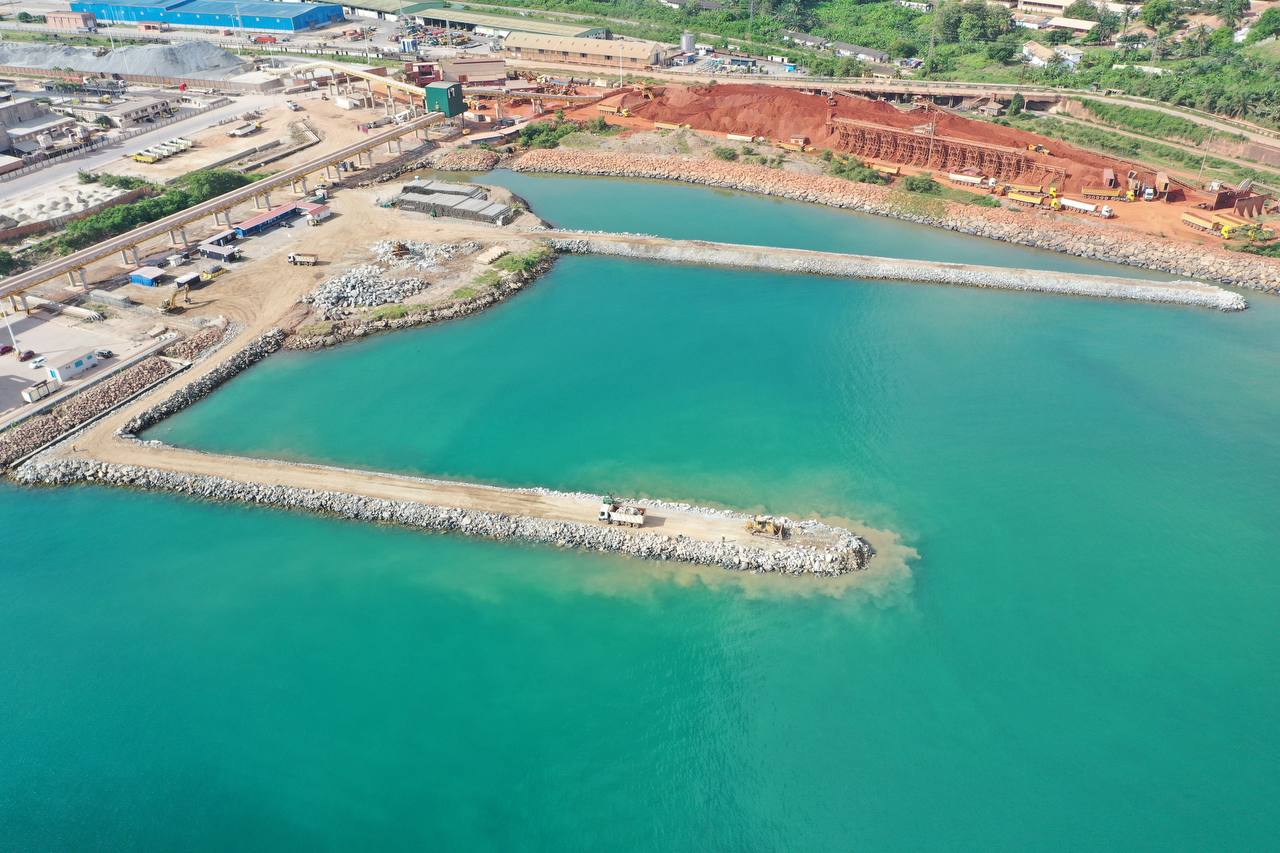

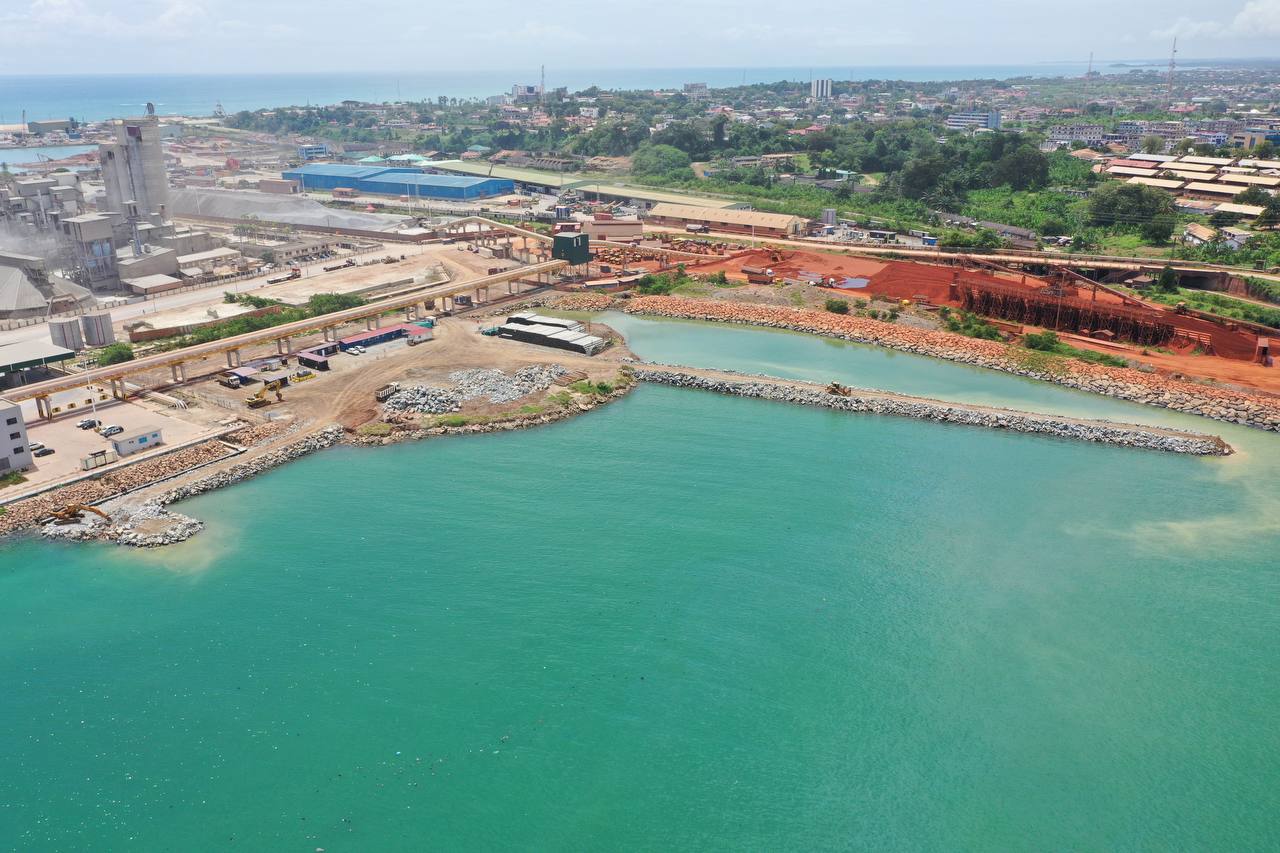

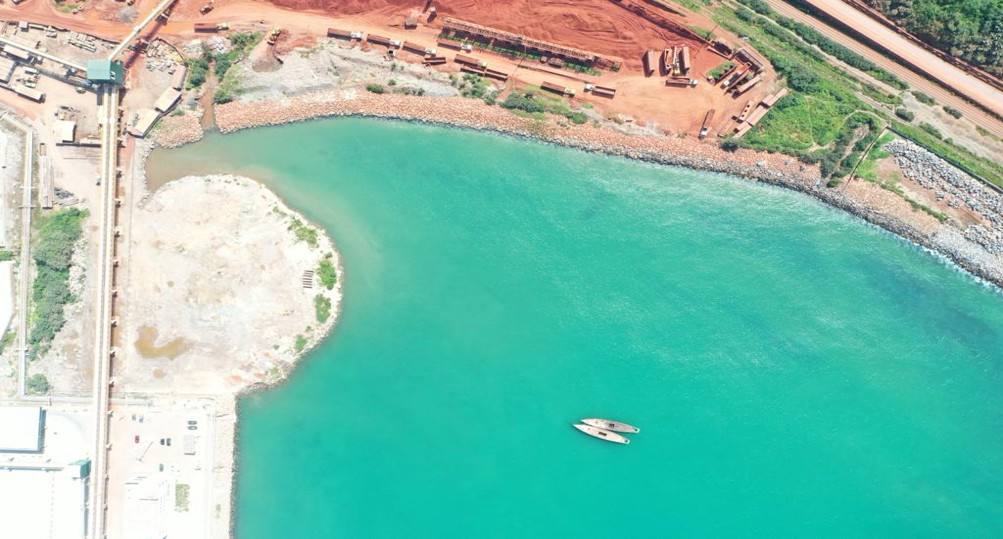

The revetment phase established the shoreline protection system, including 350 m of multi-layer revetment and 280 m of single-layer revetment, with core, underlayer, and armor protection works completed as part of the marine edge buildout.

Structure 350 m multi-layer + 280 m single-layer

Core Revetment 66,286 m³

Protection Layers 13,361 m³ underlayer + 6,318 m³ armor

Phase B

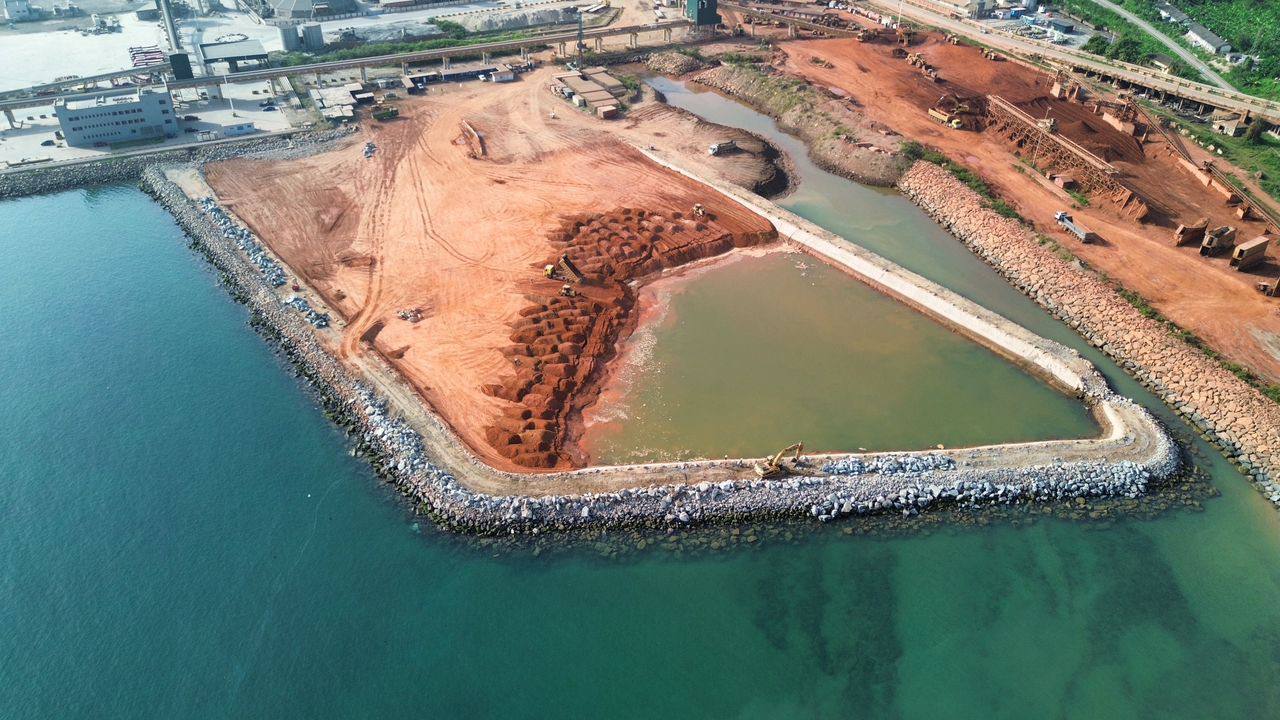

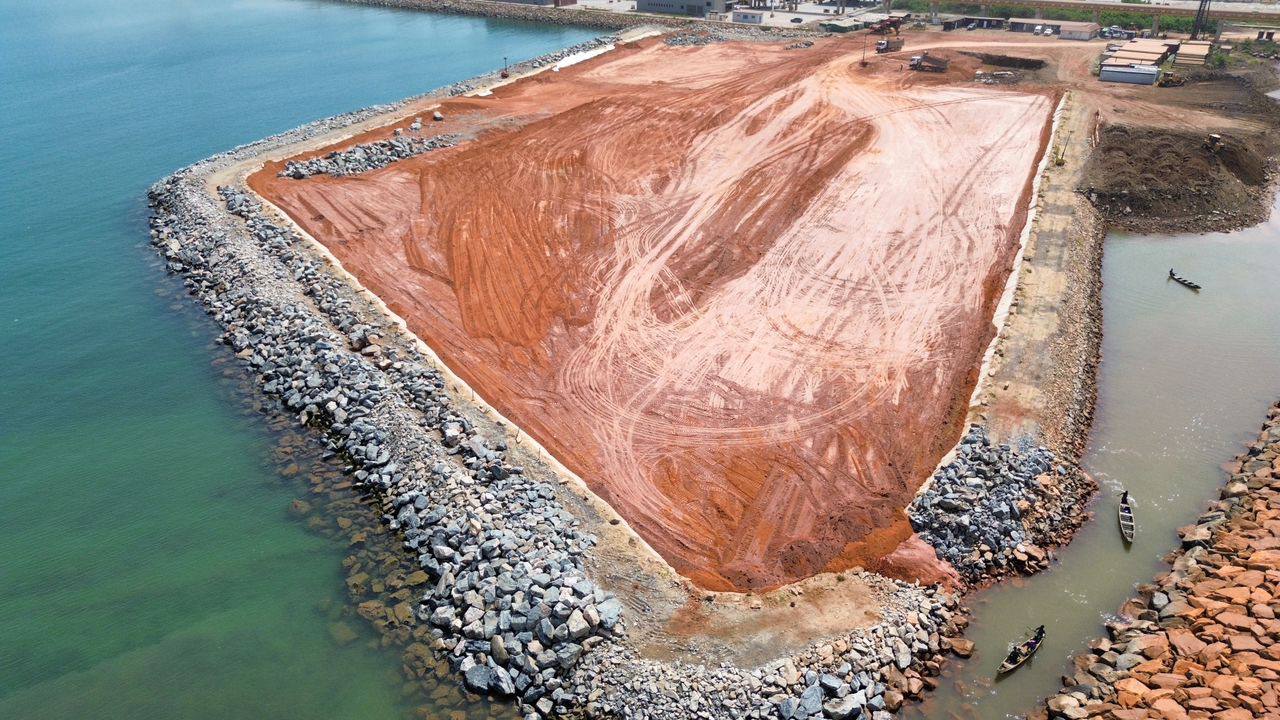

Reclamation

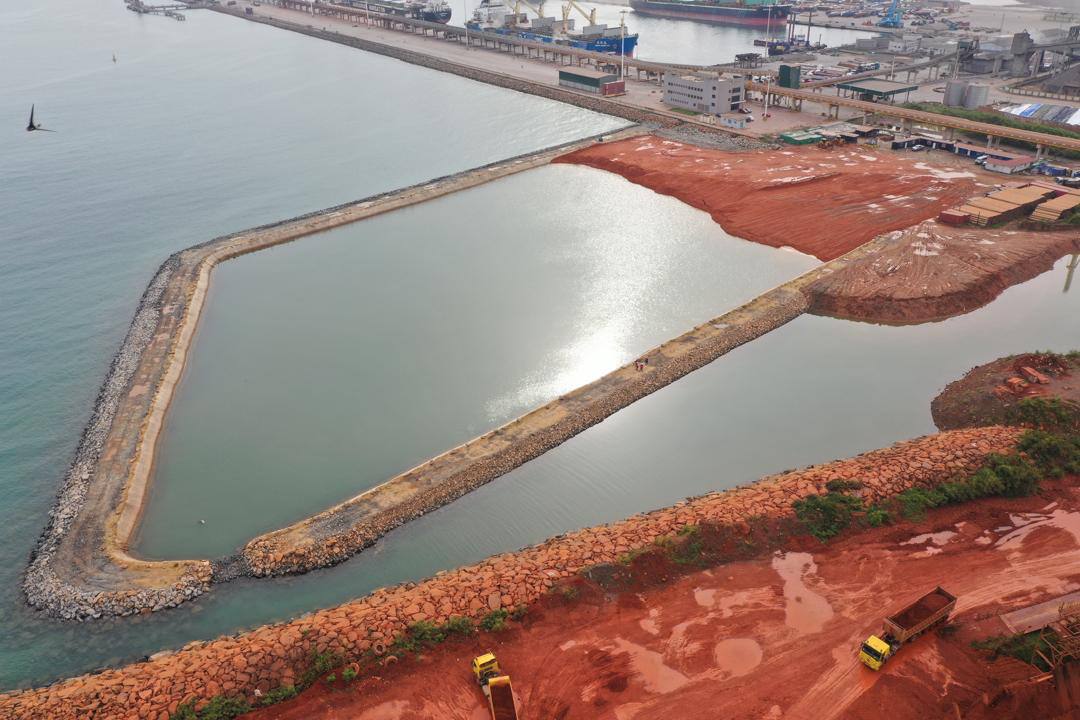

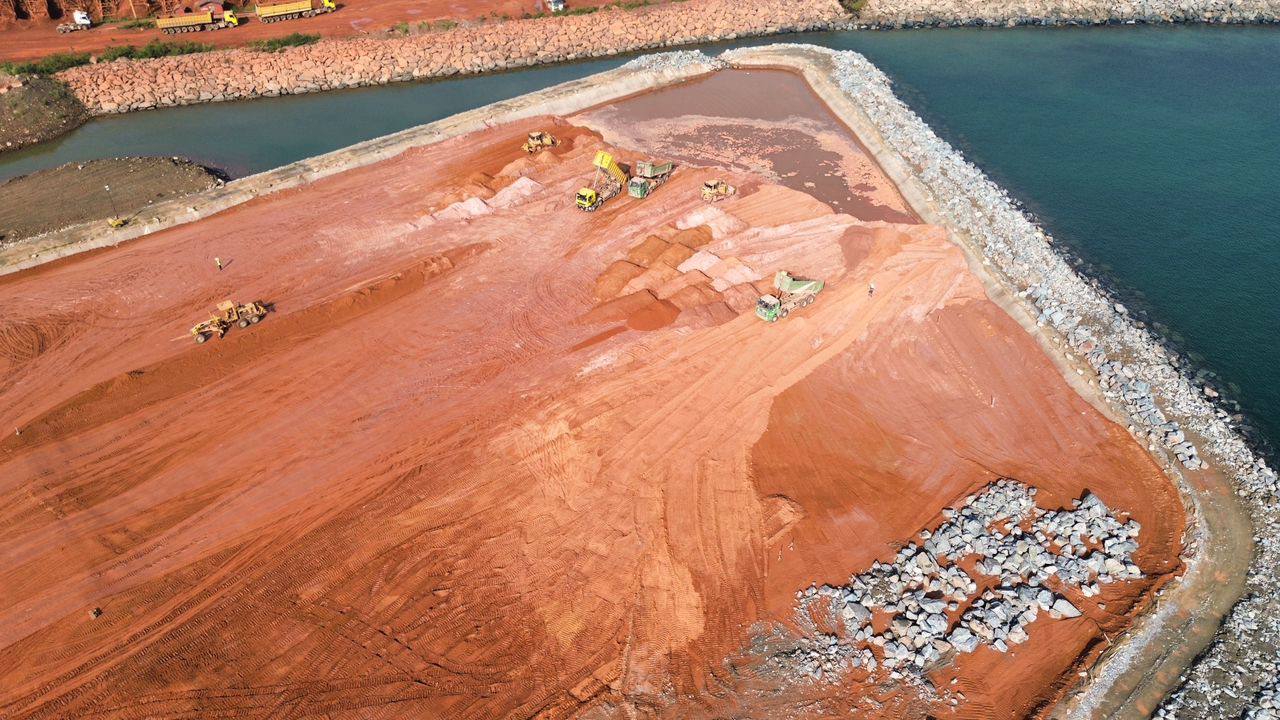

The reclamation phase brought the site above water and up to design level, creating a 30,000 m² area through laterite filling and controlled compaction, with infill volumes completed across the reclaimed platform.

Area Achieved 30,000 m²

Compaction Tests at 200 mm levels above water

Land-Based Infill 186,716 m³ of laterite

Phase C

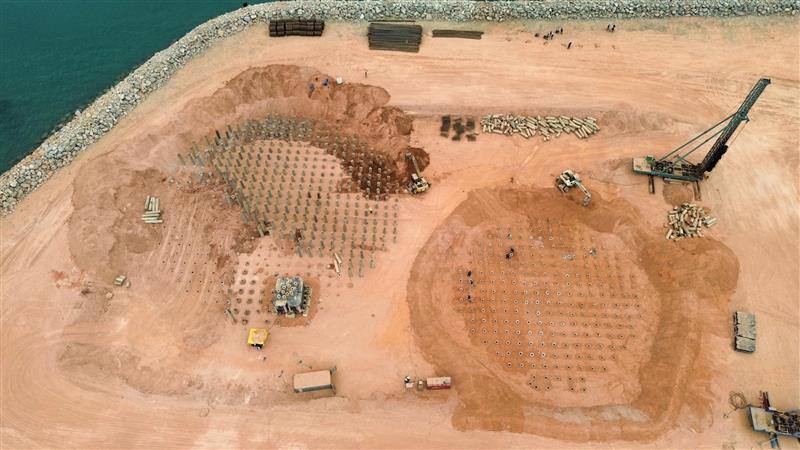

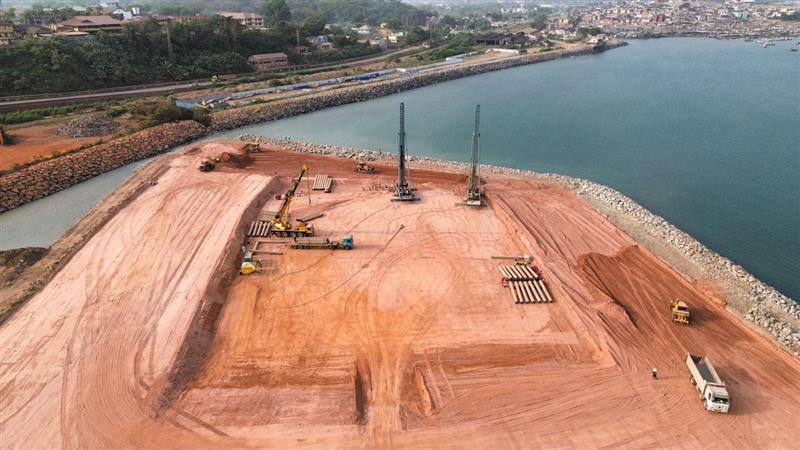

Piling

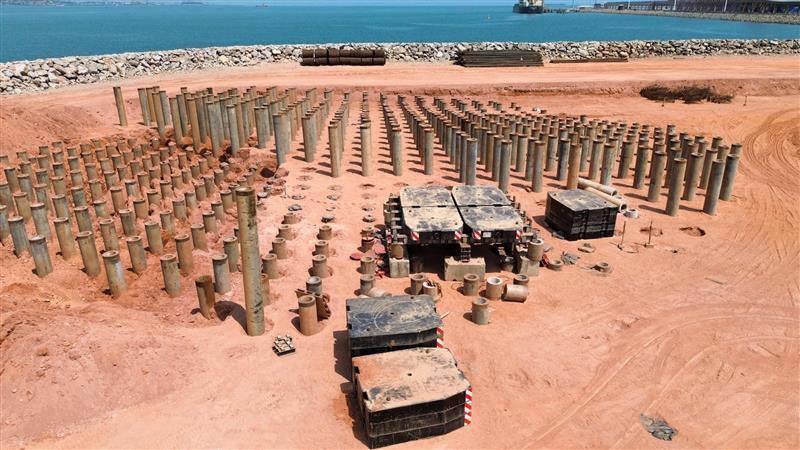

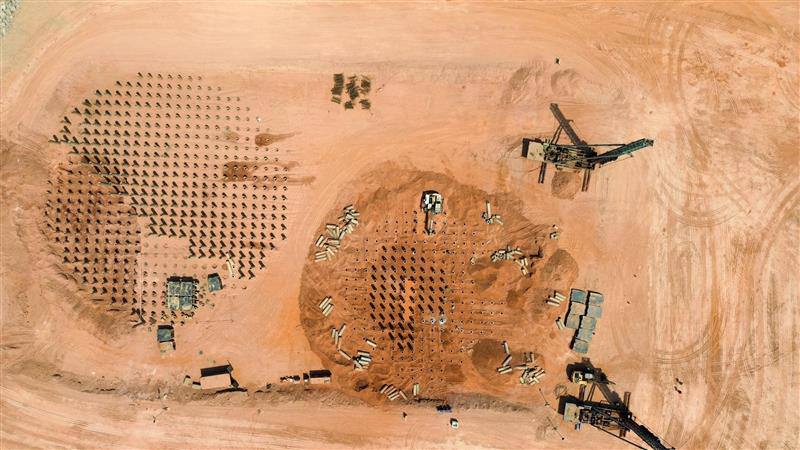

The piling phase established the structural support system for both butane and propane areas, using combined loading pile design to manage lateral and end-bearing demands across the terminal footprint.

Butane Piles 227 total

Propane Piles 497 total

Pile Type Combined loading: lateral + end bearing

Phase D

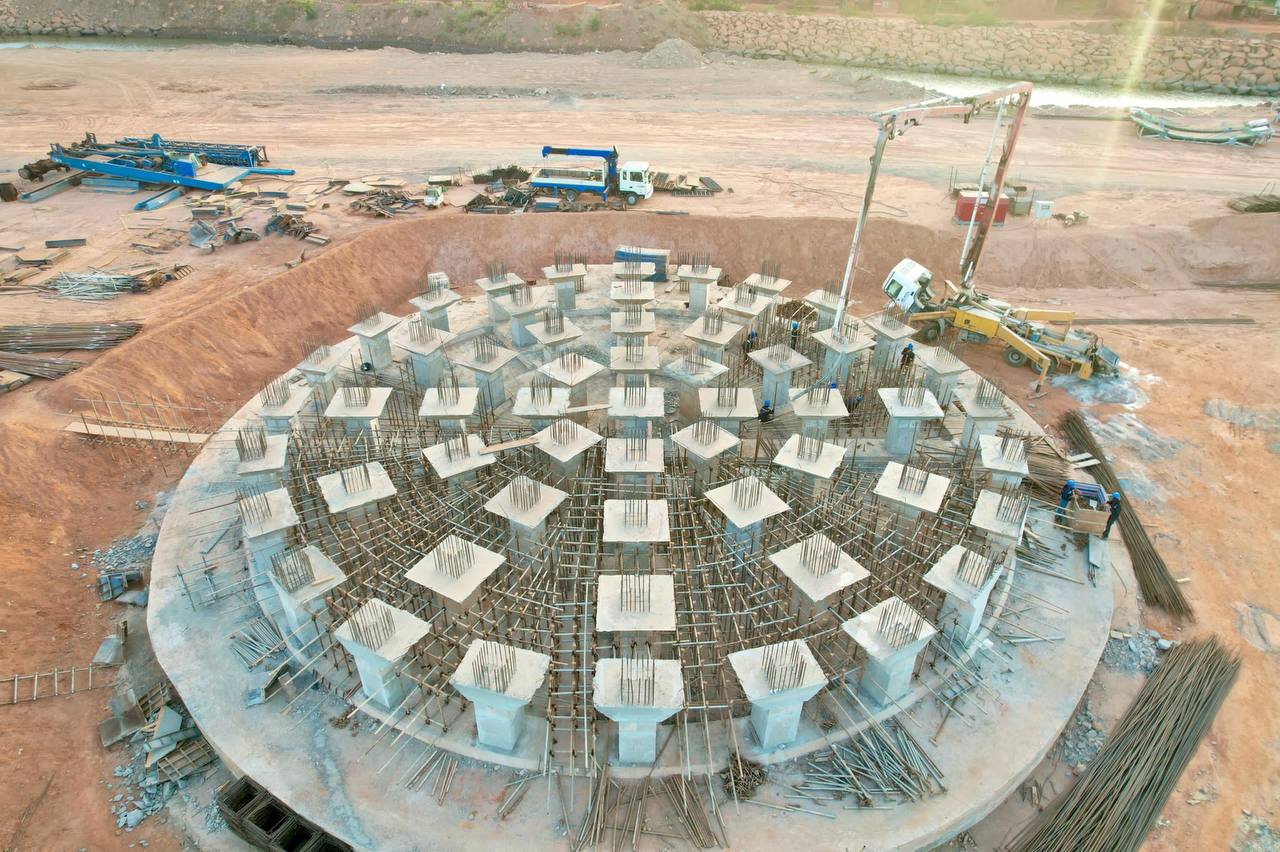

Concrete Foundations

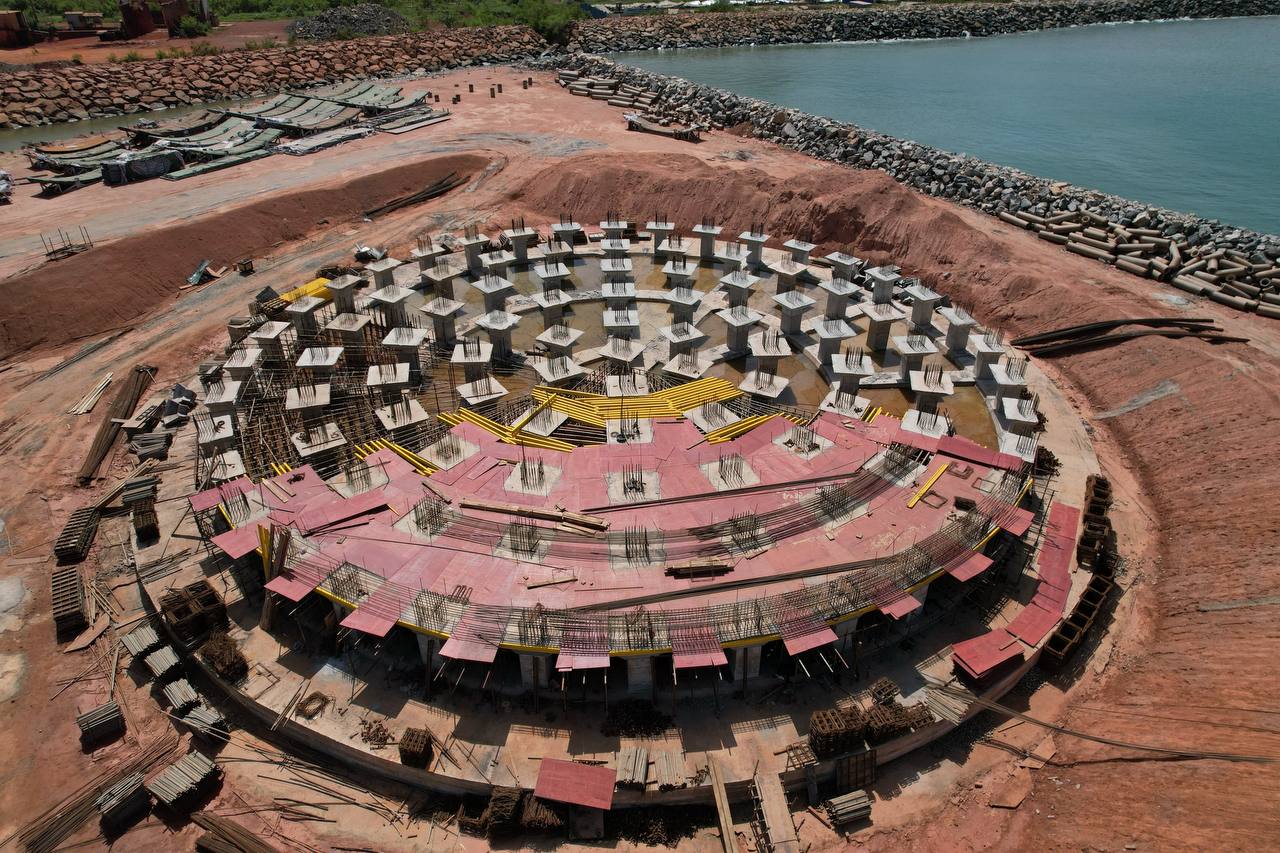

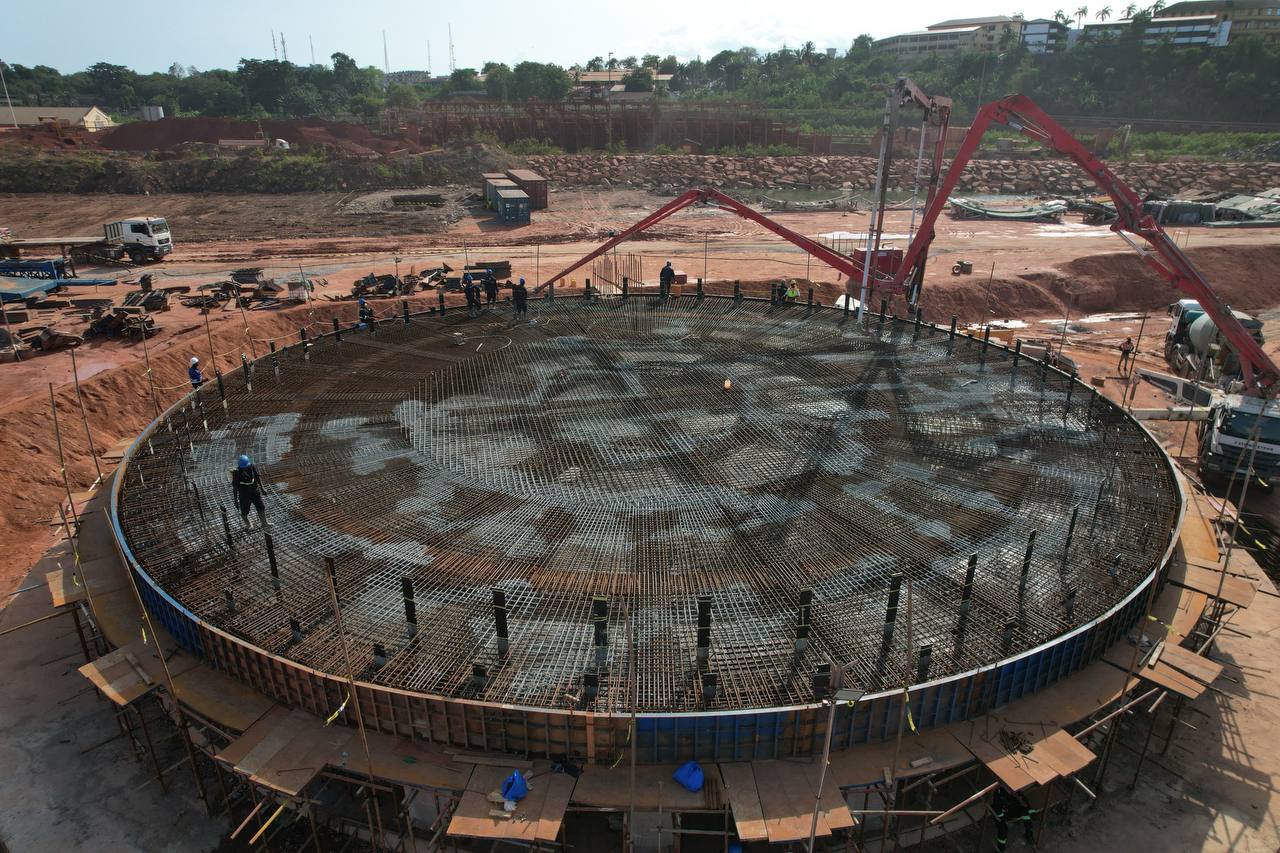

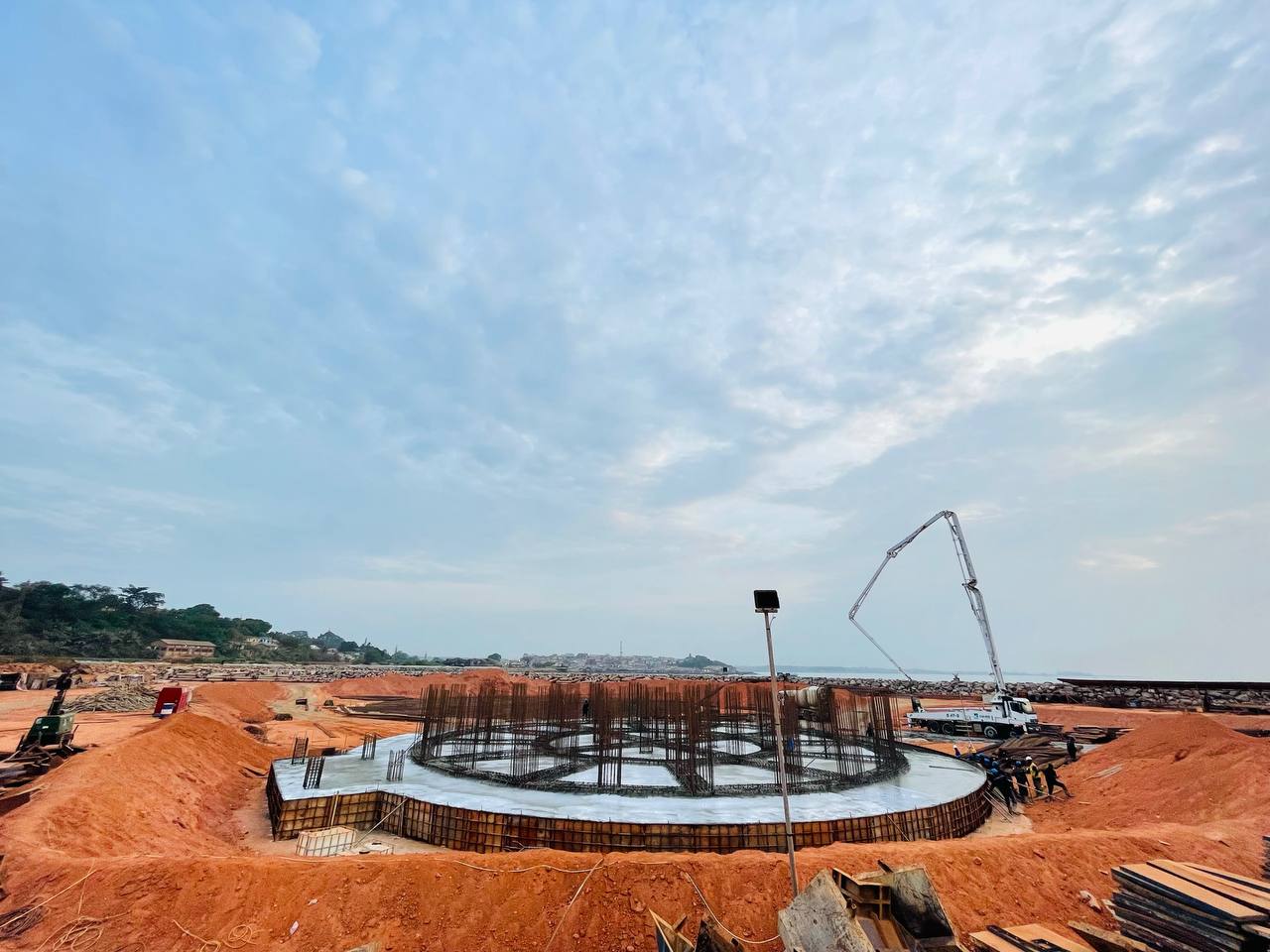

The concrete foundations phase formed the base supports for the cryogenic tank system, with reinforcement completed to engineering specification and structural pours executed for the support platforms.

Scope Cryogenic tank support foundations

Reinforcement Completed to engineering specification

Purpose Base structural platform for tank installation

Phase E

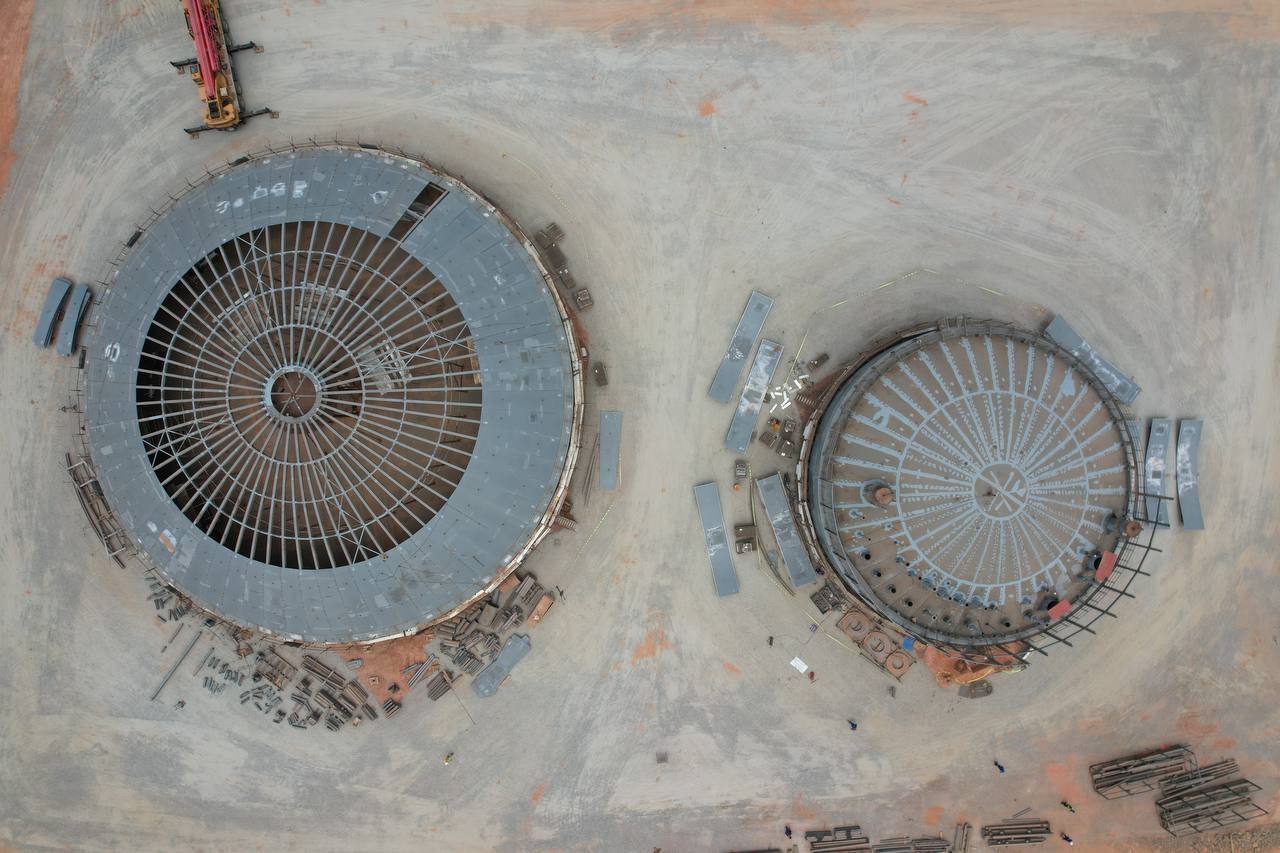

Tank Fabrication

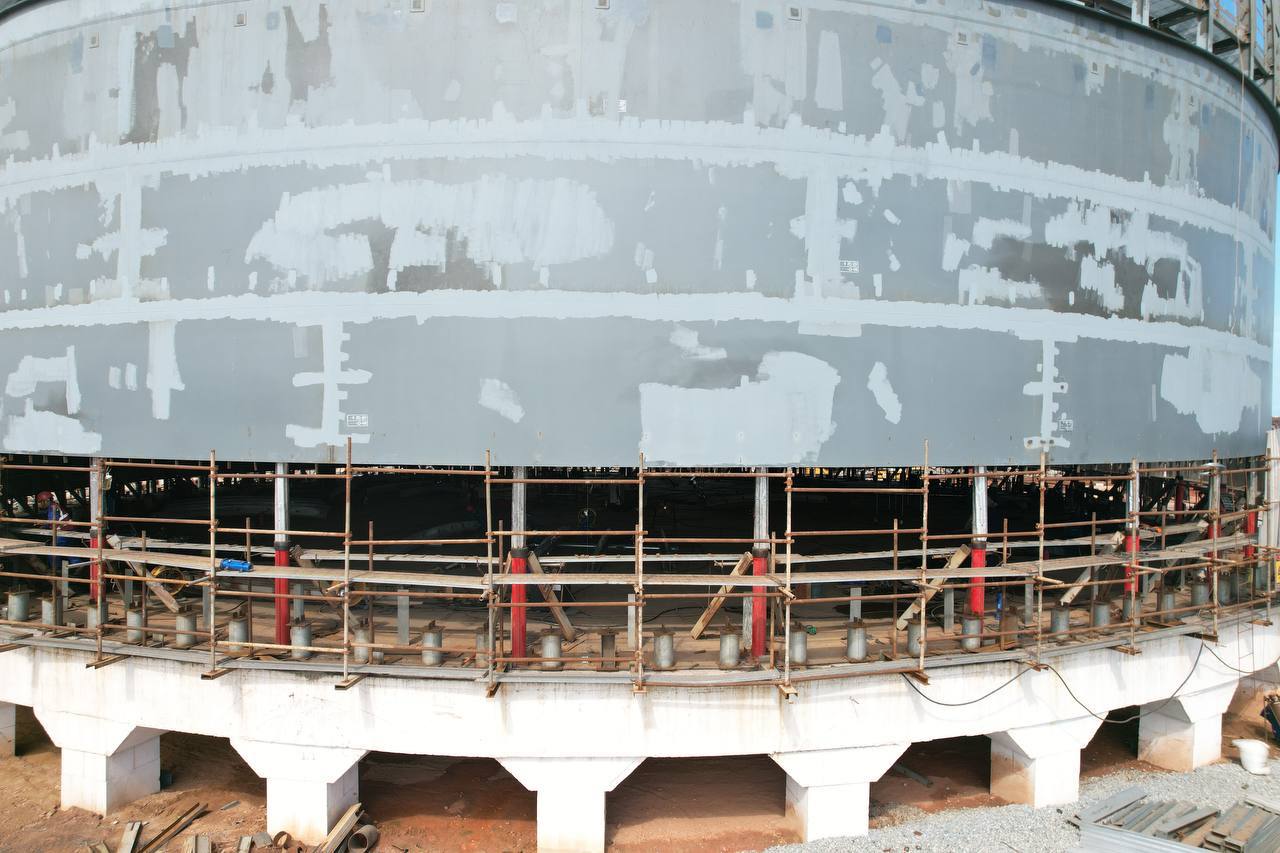

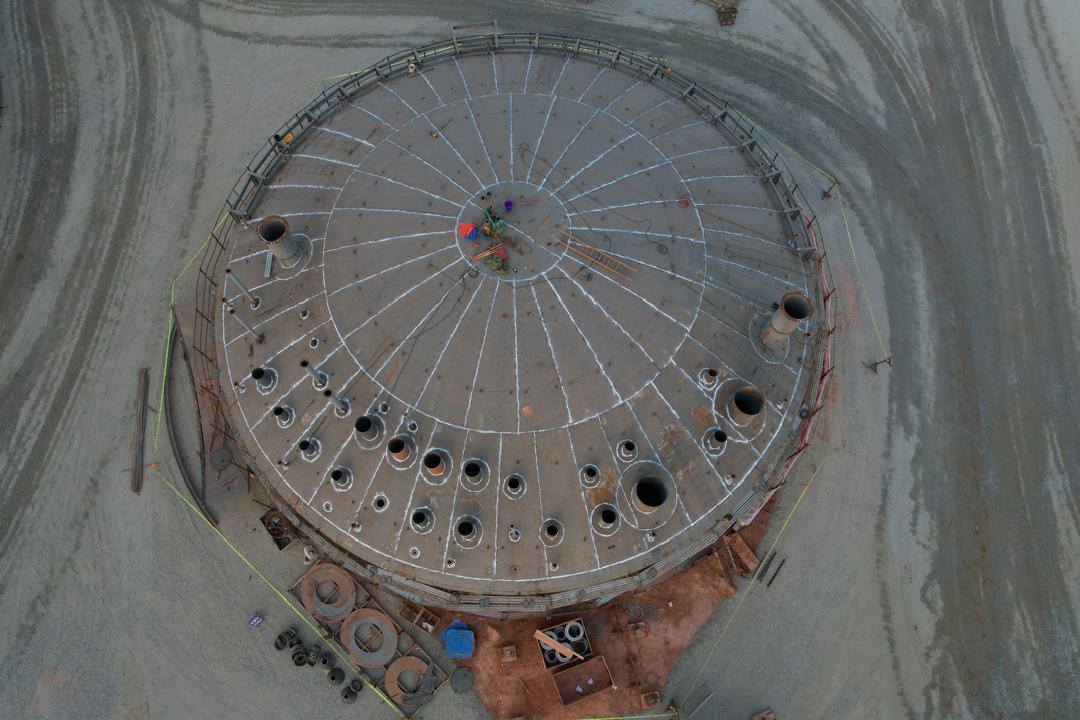

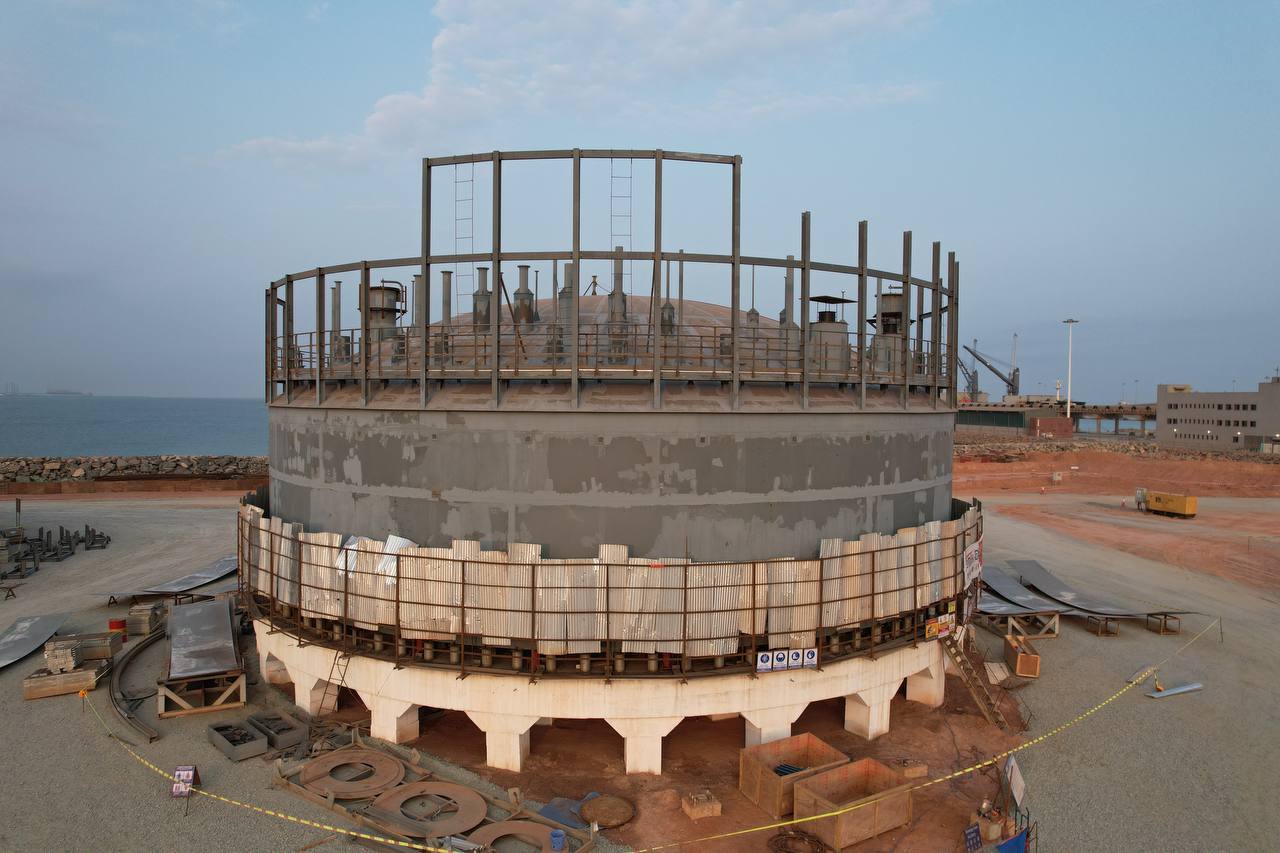

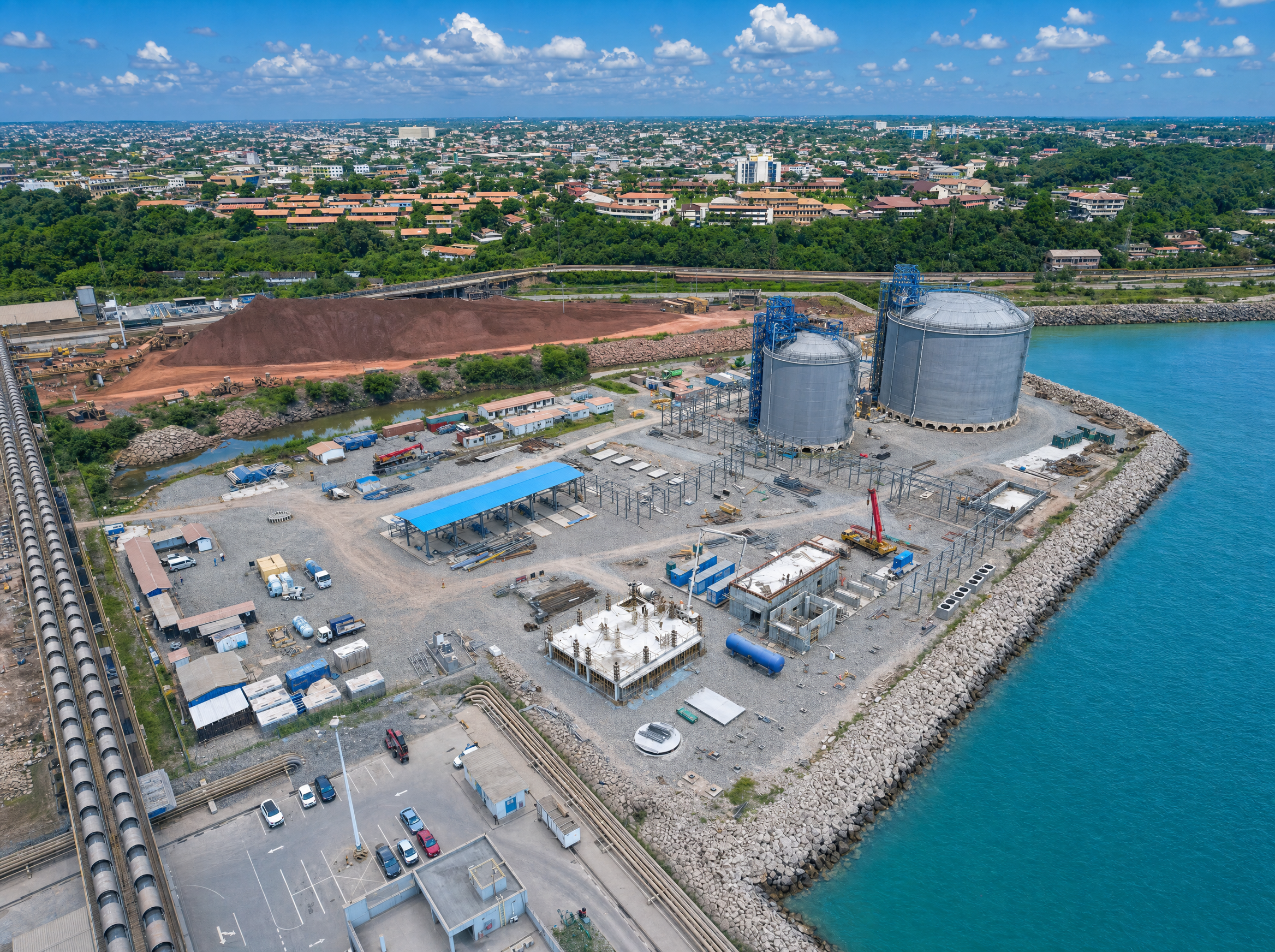

Cryogenic tank modules were fabricated on site and advanced through welding and pressure testing for both butane and propane storage systems, forming one of the most visually defining stages of the project.

Fabrication Cryogenic tank modules built on-site

Butane Storage 10,000 m³

Propane Storage 30,000 m³

Phase F

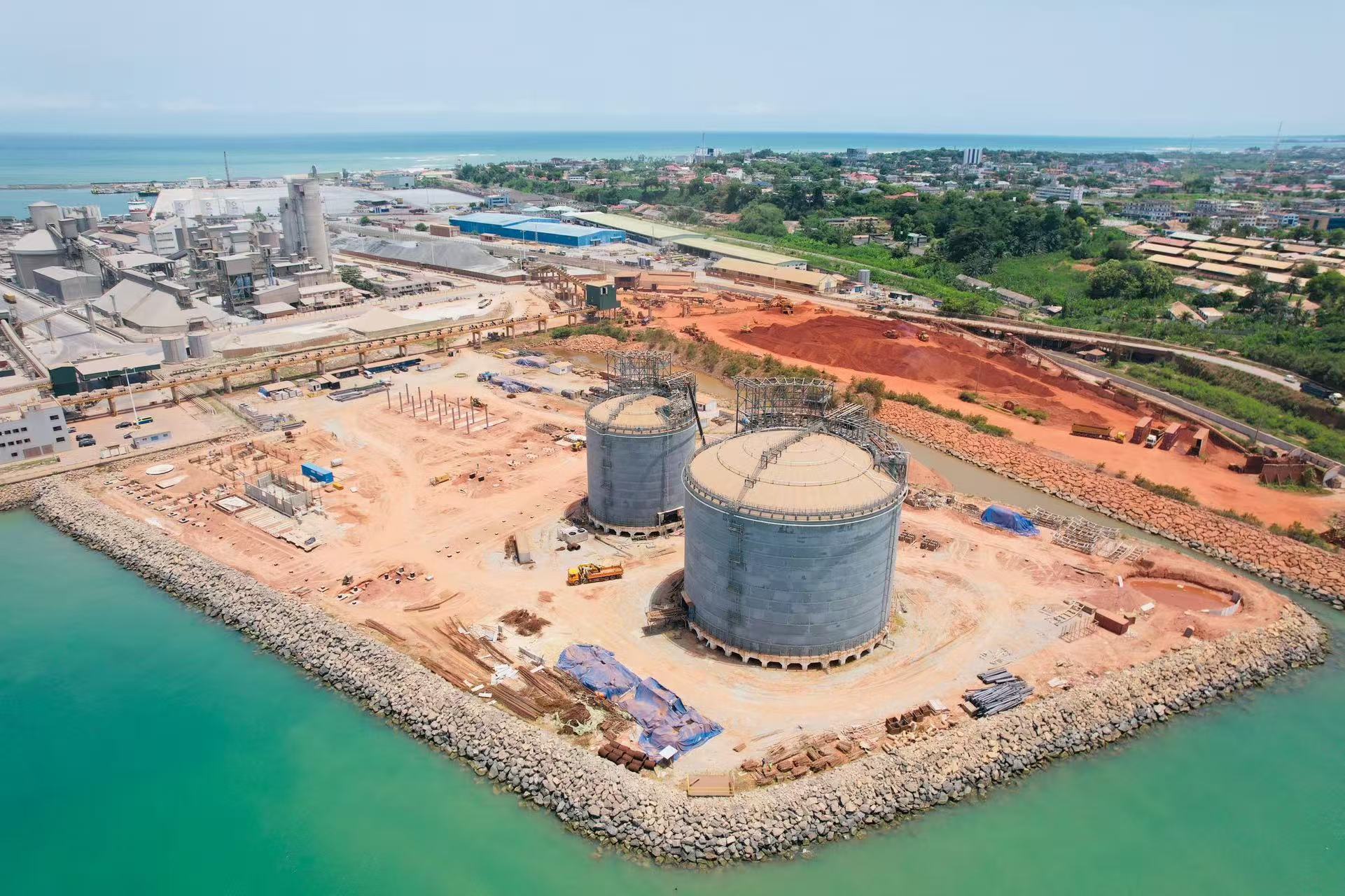

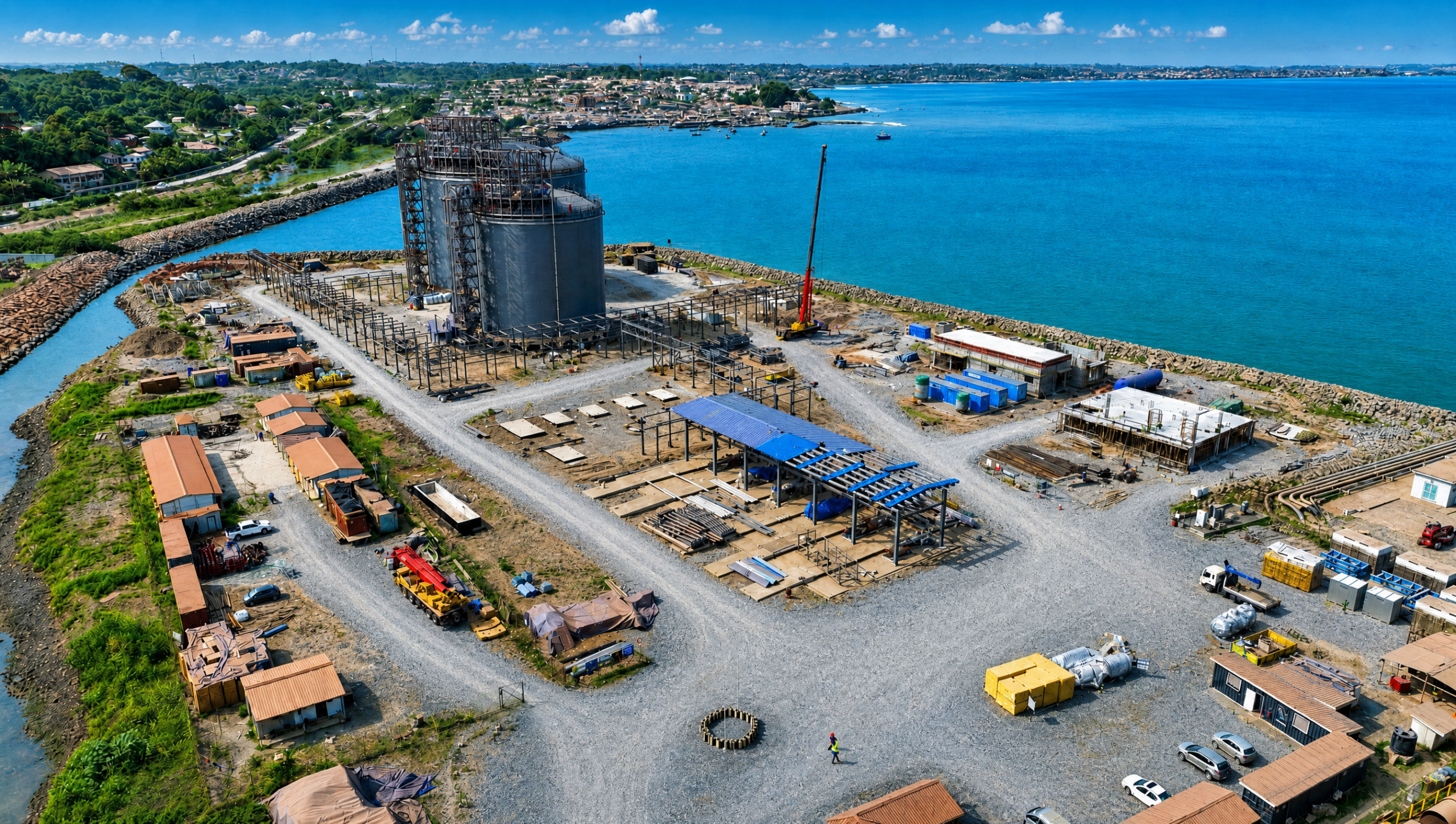

Installation

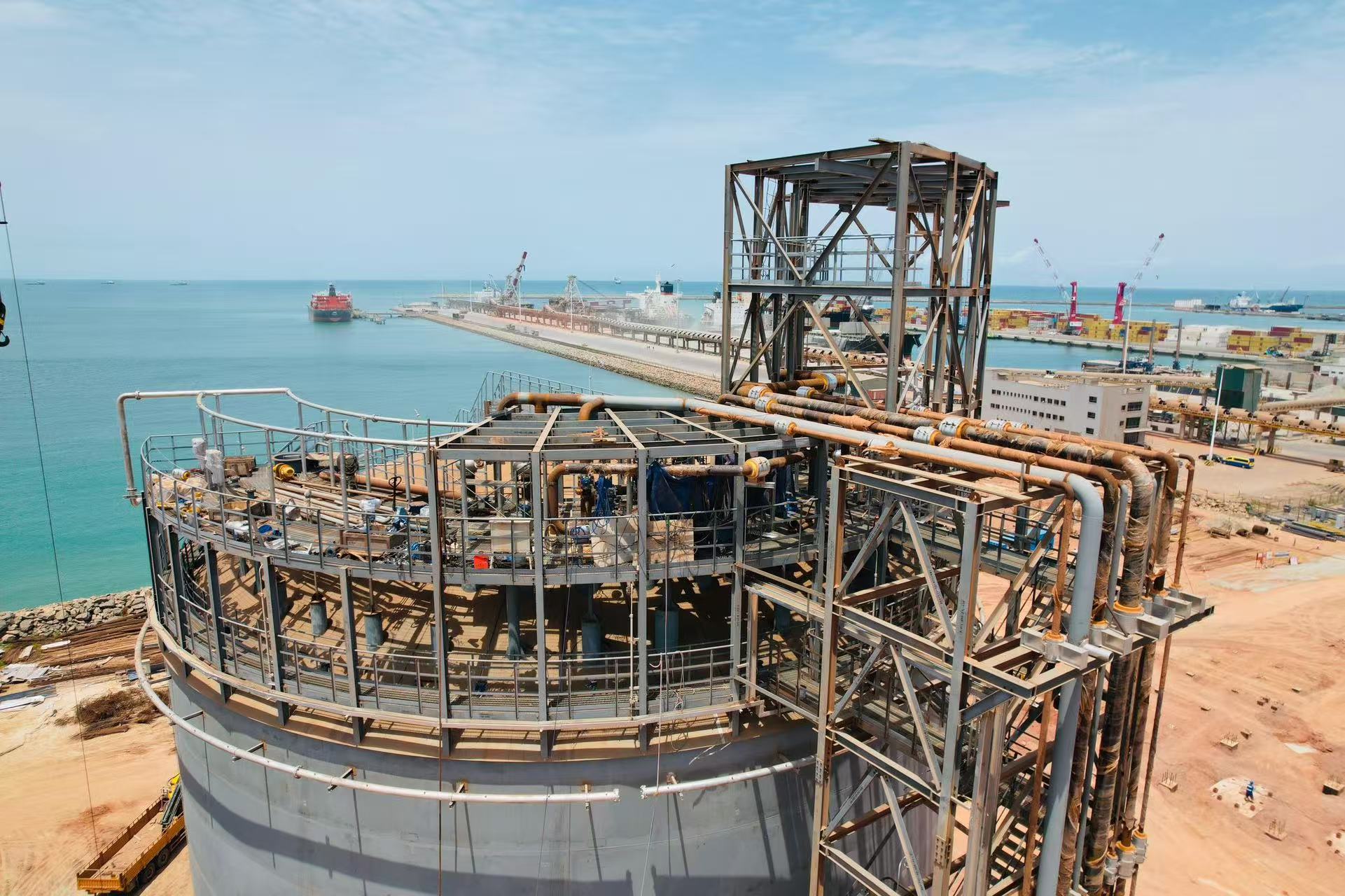

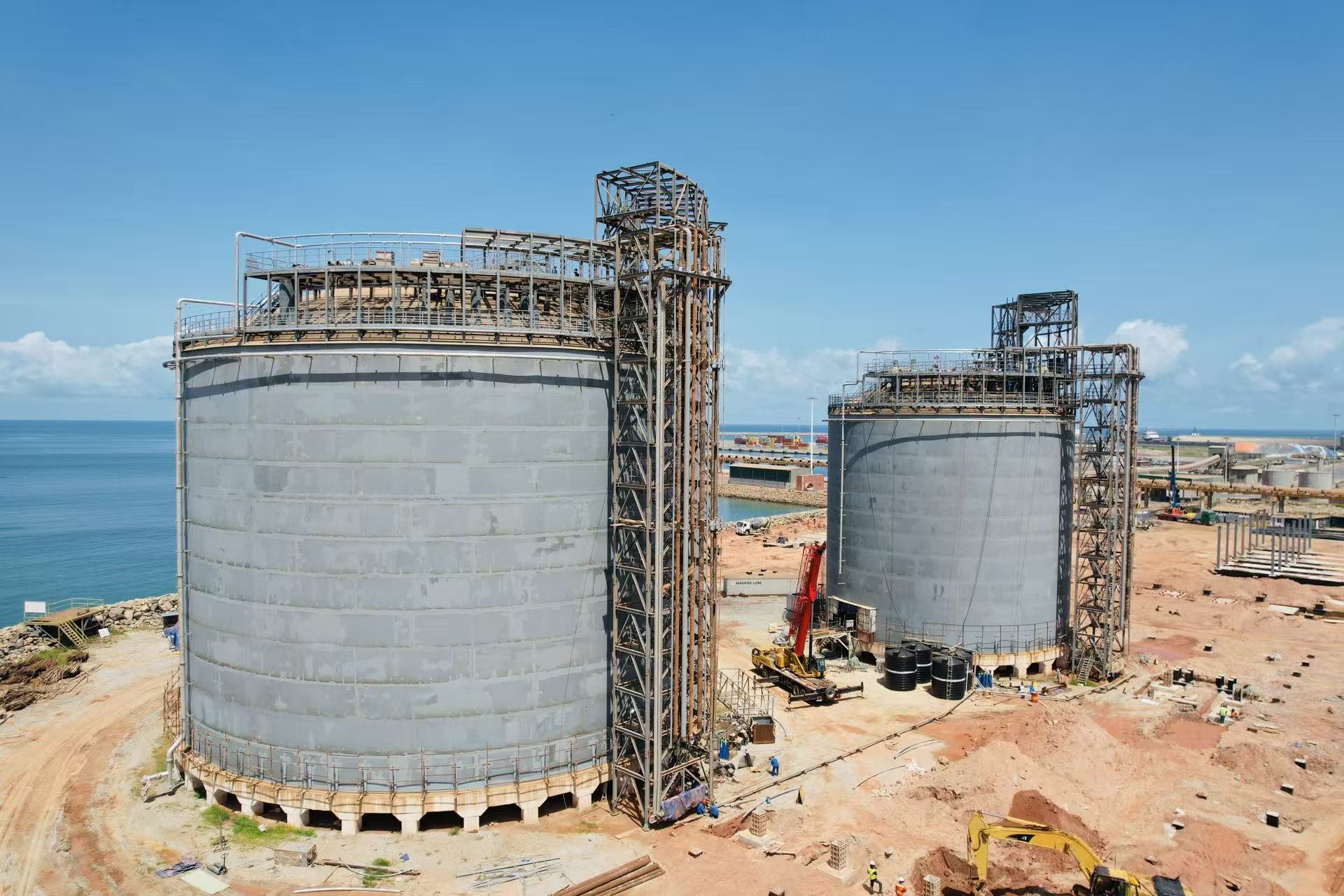

The installation phase brought together internal systems and operational infrastructure, including the aluminum ceiling, pump wells, internal piping, tower stairs, maintenance platforms, fire lines, and inner shell ring installation and welding.

Internal Systems Pump wells, internal pipes, fire lines

Access & Operations Tower stairs and O&M platforms

Tank Completion Inner shell rings installed and welded

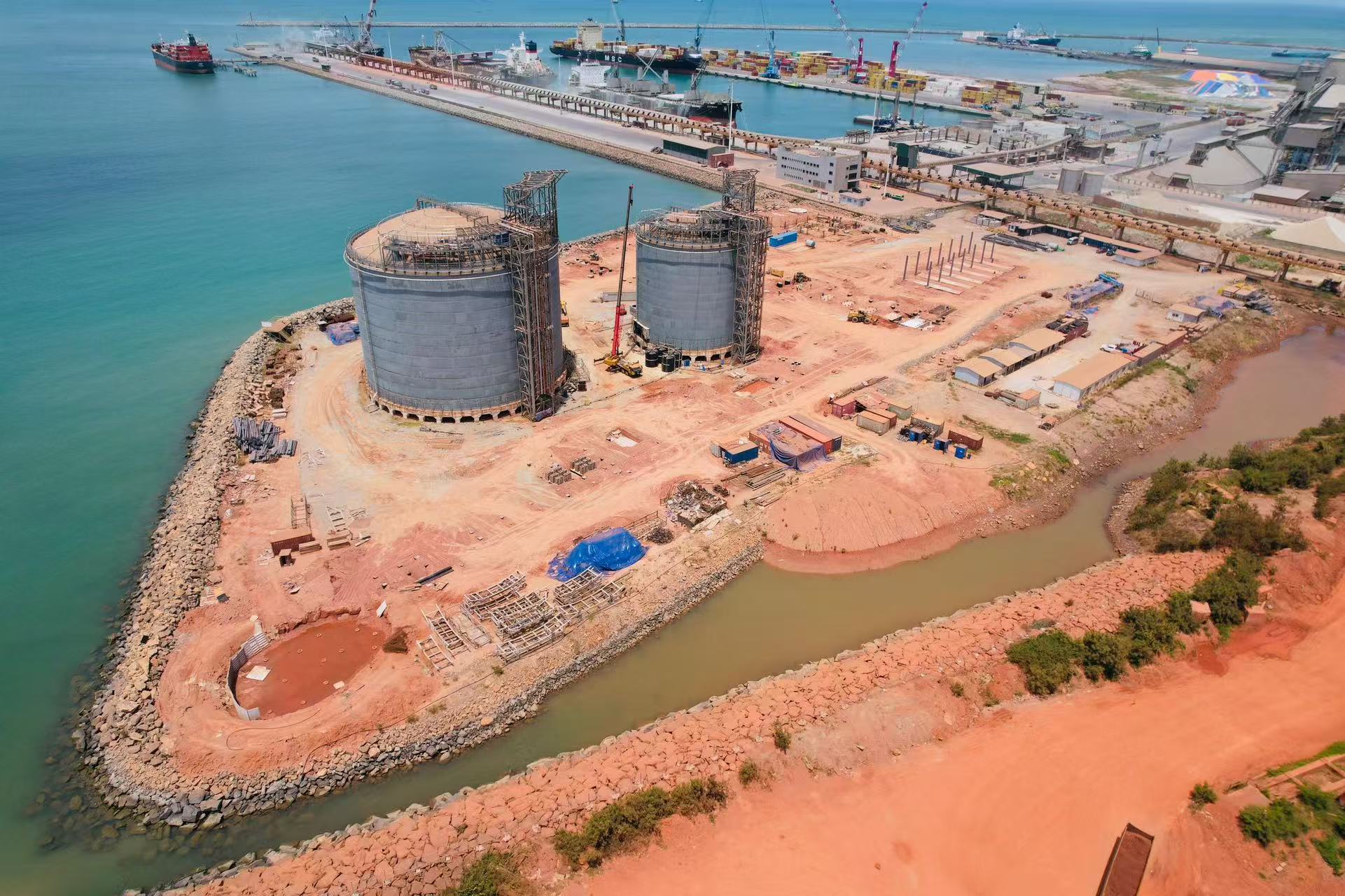

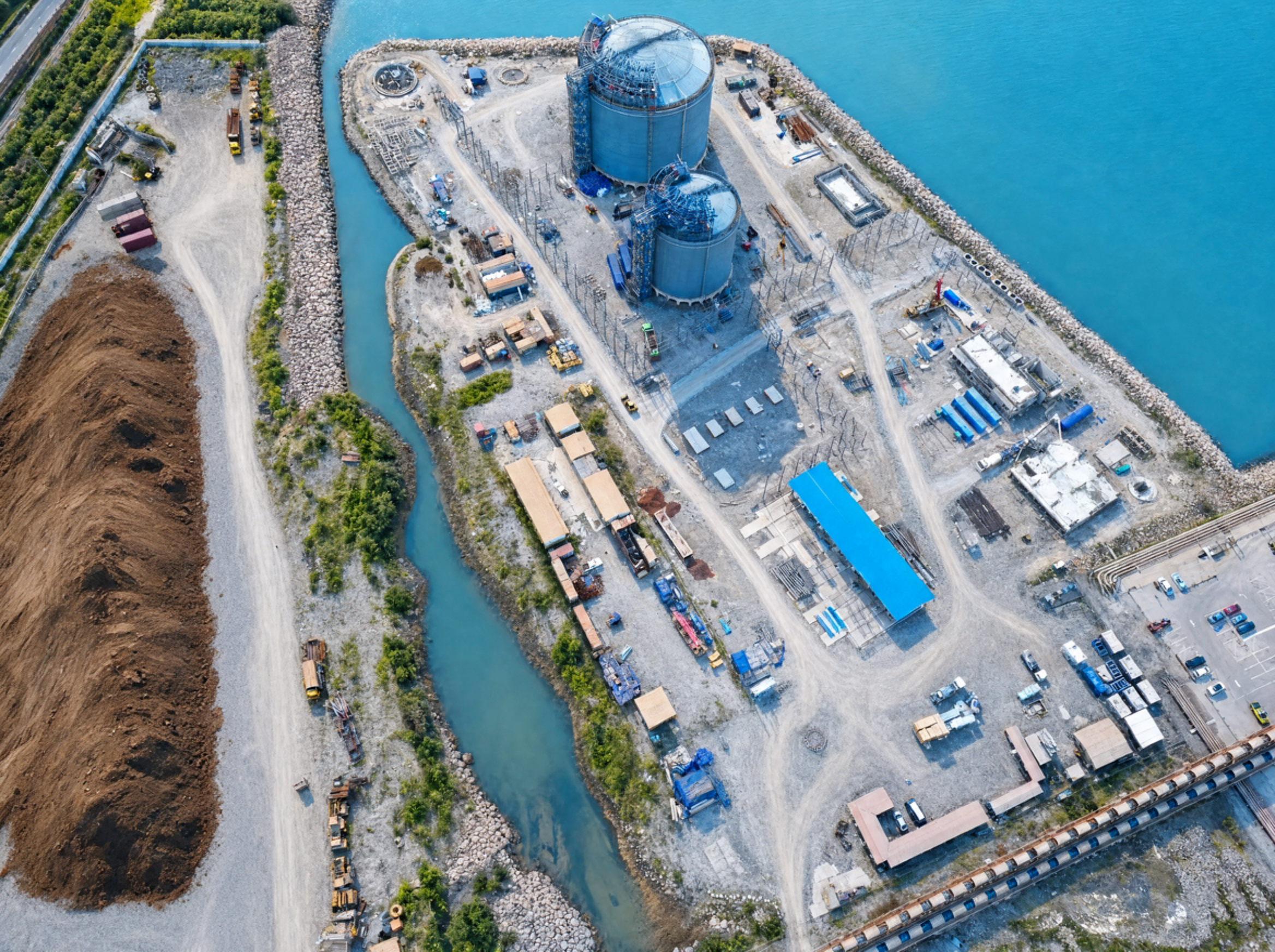

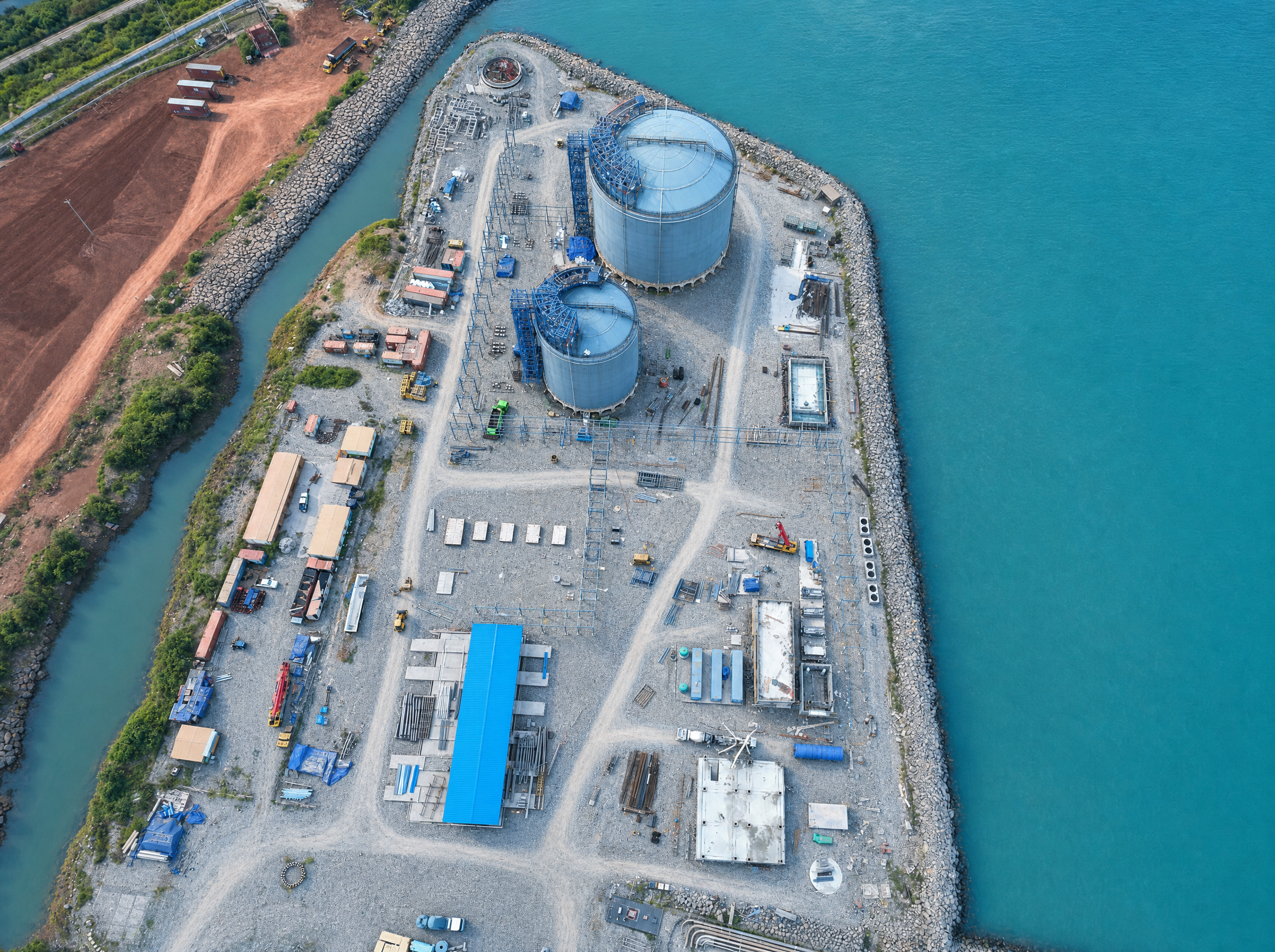

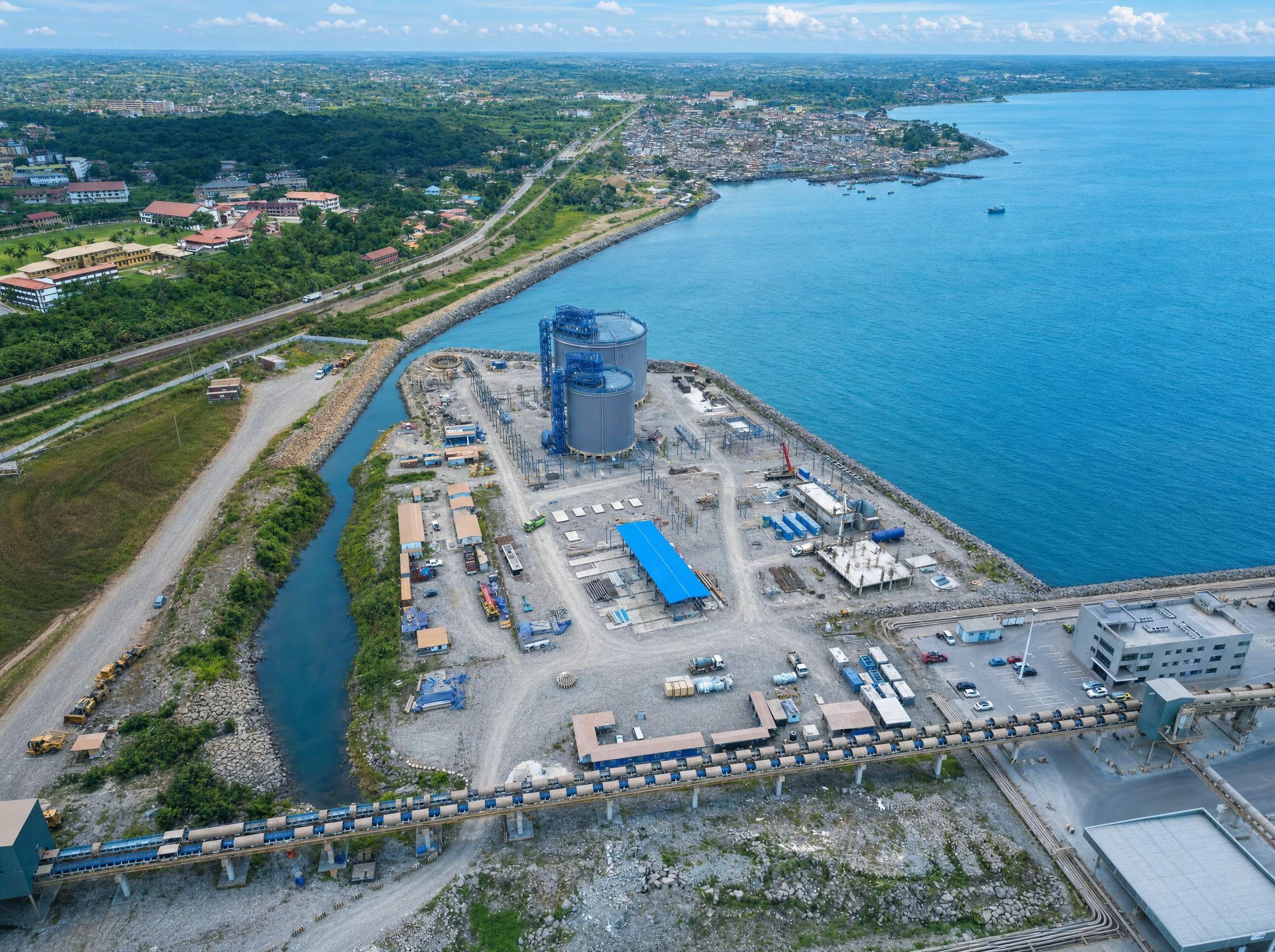

Takoradi Natural Gas Liquids Export Terminal (TNET)

A multi-phase terminal development built through coordinated marine, civil, and tank construction works

Built through sequential infrastructure phases

Our construction story
